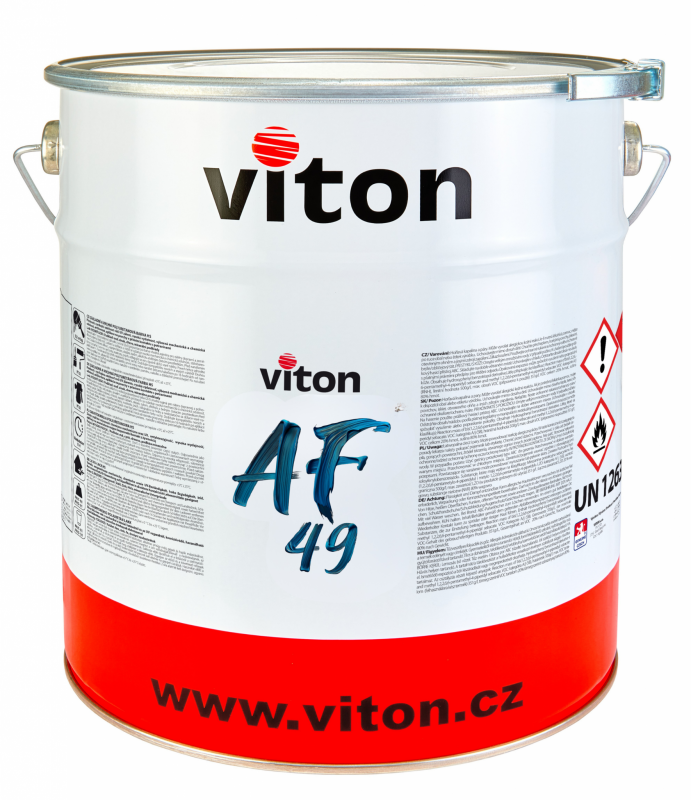

AF 49

A professional two-layer coating system for machinery that must withstand mud, dust, vibration, and continuous heavy-duty operation.

Perfect finishes start with the substrate. AF 49 – A foundation that lasts.
The quality of a coating doesn’t depend on the topcoat alone, but on what lies beneath it.

AF 49 creates a strong, even and compact base that allows ACE or PE topcoats to perform at their best – with clean flow, accurate colour, hardness and long-term durability.
In the ACE segment (Agriculture, Construction, Earthmoving), where equipment is exposed daily to abrasion, UV, vibration and demanding cleaning, this combination gives manufacturers confidence in a finish that will last for years.

Why AF 49?

• Levels the surface and equalises absorption – the ideal foundation for ACE and PE topcoats.
• Fast drying – surface dry (stage 1) after 15 minutes, handling possible after approximately 3 hours.
• Two process options – traditional sandable filler or wet-on-wet for maximum speed.
• High filling power and easy sanding – without clogging the abrasive.
• No sagging even at higher film builds (up to 350 µm WFT) – stable film on vertical surfaces.
• Versatile application – airless/airmix, conventional spraying, brush and roller.
• Wide substrate compatibility: steel, galvanised steel, aluminium.

How AF 49 works in practice

AF 49 forms a stable, continuous and precisely controllable film. It eliminates surface irregularities and gives the topcoat the conditions it needs to achieve uniform flow and a smooth final appearance.

With a wet-on-wet process, overall processing time is further reduced – ideal for serial production where every pass through the spray booth counts.

Need a tailored application recommendation?

Send us the type of machine or component, substrate and required service life.
We will propose the optimal film thicknesses, consumption and the complete AF 49 + ACE system tailored to your process.

Contact us at objednavky@viton.cz or give us a call.
